Sign Making Machines

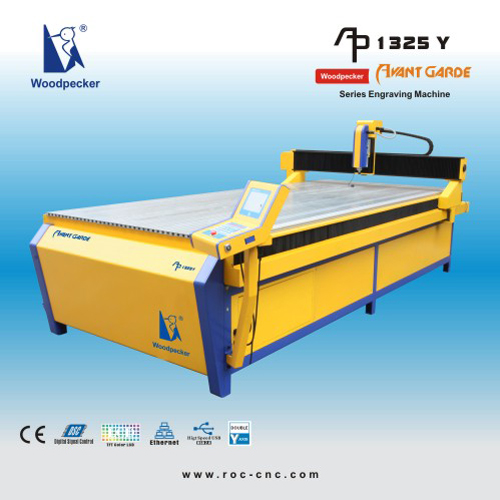

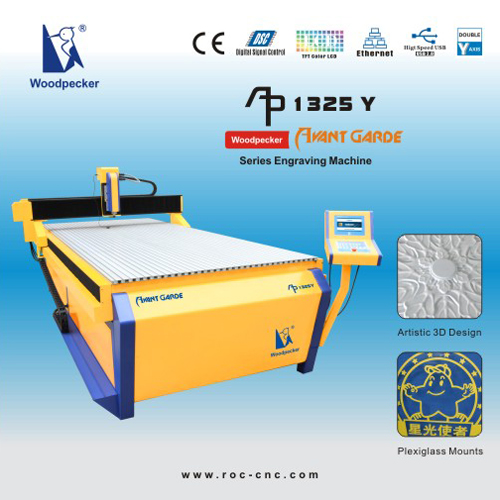

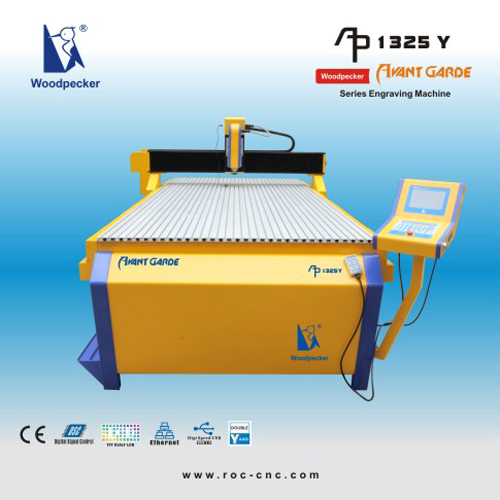

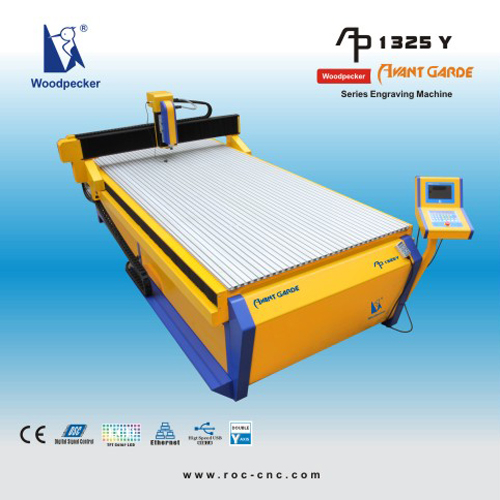

Avant Garde Series machine

Type: AP 1325Y

Avant Garde Series machine, following the Diva and Camaro series, is released to meet the demands of the mid-market. It is sleek, fast, precise and easy to operate. It is widely used in printed circuit boards, fixtures, industrial prototyping, tags and wooden furniture.

“Woodpecker” double ball screw engraving machine is the latest model released by ROC-MESE. It’s as precise as a traditional ball screw engraving machine and as fast as a rack and pinion engraving machine. It comes with a newly developed Woodpecker color screen and wireless handheld controller. Smooth and fast speed makes the engraving or cutting function much better.

The controller uses DSC technology, enhancing data processing speed. With a step driver, it can reach speeds up to 7.2 meters per minute. When the job mixes straight lines and arcs, it will make the output very smooth. The new controller has the same previous functions such as cutting at an angle for smoother cuts, power failure memory of the last point, restarting the job at any line, etc… New functions includes Professional modes like “Constant speed cutting”, “2D mode”, “3D mode”, “Custom made mode” (the user can set his own  defined parameters for each kind of job and save it), which is easier to reuse for the future. The new controller has many kinds of high level functions, like “Duplicate Mode”, “Mirror Image Mode”, “Scanning Mode”, “Drilling Mode” *, etc. With the new DSC controller, updates can be made via files that can be downloaded from ROC-MESE website (only for registered end users). Customers can now have the latest software version of the controller without replacing the board.


★ 7'' DSC-971 Color screen controller.
★ Large machine with dual Y axis drivers and linear guide.
★ Sleek looks, good rigidity, high precision.

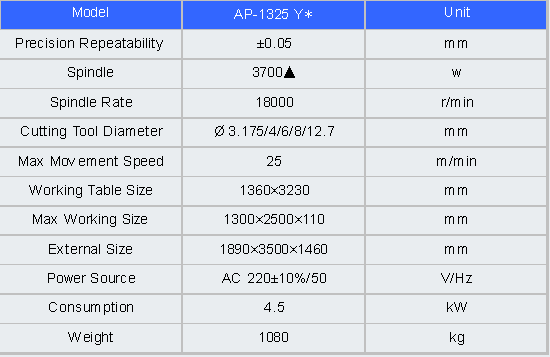

Technical Parameters



▲Optional:500W floating spindle.
Note: Parameters are subject to change. Use our company technical standards as the basis. Final parameters to be solely determined by ROC-MESE.
